TextView in Android is one of the basic and important UI elements. This plays a very important role in the UI experience and depends on how the information is displayed to the user. This TextView widget in Android can be dynamized in various contexts. For example, if the important part of the information is to be highlighted then the substring that contains, it is to be italicized or it has to be made bold, one more scenario is where if the information in TextView contains a hyperlink that directs to a particular web URL then it has to be spanned with hyperlink and has to be underlined.
Operations Performed in TextView on Android

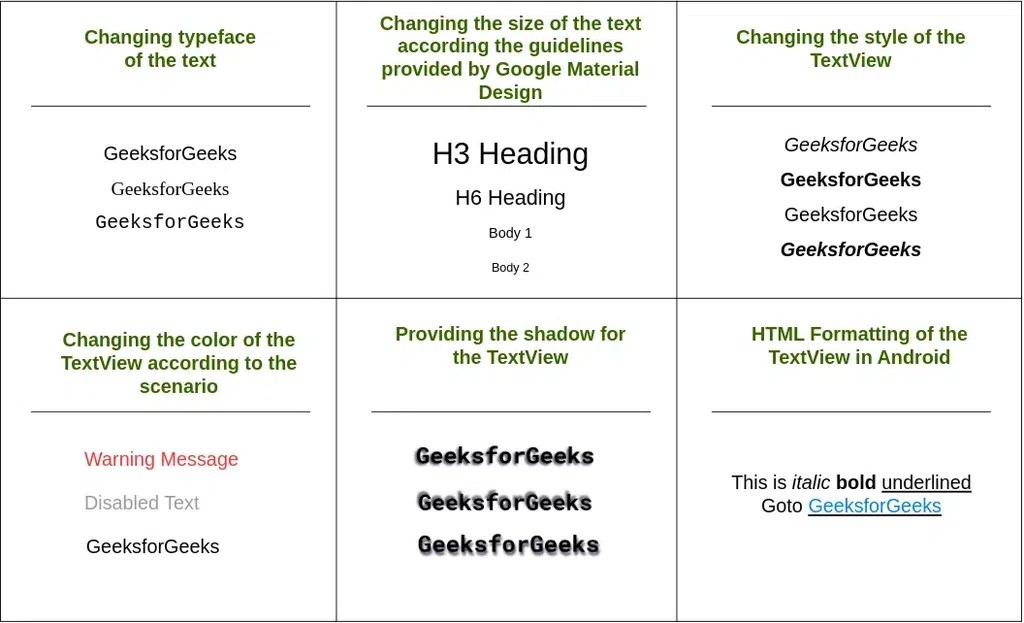

Have a look at the following list and image to get an idea of the overall discussion.
Table of Content
- Formatting the TextView
- Size of the TextView
- Changing Text Style
- Changing the Text Color
- Text Shadow
- Letter Spacing and All Caps
- Adding Icons for TextView
- HTML Formatting of the TextView
Step by Step Implementation
Step 1: Create an Empty Activity Project
- Create an empty activity Android Studio Project. Refer to Android | How to Create/Start a New Project in Android Studio? to know how To Create an empty activity Android Studio project.
Step 2: Working with the activity_main.xml file
- The main layout and one, which includes only a TextView and as varied as we go on discuss the various contexts.
To implement the UI of the activity invoke the following code inside the activity_main.xml file.
<?xml version="1.0" encoding="utf-8"?><androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity" tools:ignore="HardcodedText"> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="GeeksforGeeks" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="parent" app:layout_constraintTop_toTopOf="parent" /></androidx.constraintlayout.widget.ConstraintLayout>
Output UI:
1. Formatting the TextView
Android offers mainly 3 types of typefaces
- normal
- sans
- serif
- monospace
The above four types of faces are to be invoked under the “typeFace” attribute of the TextView in XML.
Invoke the following code and note the “typeFace” attribute of the TextView.
<?xml version="1.0" encoding="utf-8"?><androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity" tools:ignore="HardcodedText"> <!--the below typeFace attribute has to invoked with values mentioned--> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="GeeksforGeeks" android:textSize="32sp" android:typeface="normal" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="parent" app:layout_constraintTop_toTopOf="parent" /></androidx.constraintlayout.widget.ConstraintLayout>
Output:
2. Size of the TextView
- This feature of the Text view upholds what type of content has to be shown to the user. For example, if there is a Heading, there are 6 types of heading that can be implemented have a look at the following image which contains the guidelines for the size of the text view and style of the text view which is recommended by Google’s Material Design.
The attribute which is used to change the size of the Text View in android is “textSize”.
Refer to the following code and its output for better understanding.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" tools:ignore="HardcodedText"> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:textSize="48sp" android:text="H3 Heading" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="32dp" android:textSize="32sp" android:text="H6 Heading" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="32dp" android:textSize="16sp" android:text="Body 1" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="32dp" android:textSize="14sp" android:text="Body 2" /></LinearLayout>
Output:
3. Changing Text Style
In Android there are basically three text styles:
- Bold
- Italic
- Normal
- The text style of the text in android can be implemented using the attribute “textStyle”.
- Multiple text styles can also be implemented using the pipeline operator. Example “android:textStyle=”bold|italic”.
To implement the various text styles refer to the following code and its output.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity" tools:ignore="HardcodedText"> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="32dp" android:orientation="vertical"> <!--the below textStyle attribute has to invoked with values mentioned--> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="GeeksforGeeks" android:textStyle="italic" android:textSize="32sp" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="32dp" android:text="GeeksforGeeks" android:textStyle="bold" android:textSize="32sp" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="32dp" android:text="GeeksforGeeks" android:textStyle="normal" android:textSize="32sp" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="32dp" android:text="GeeksforGeeks" android:textStyle="bold|italic" android:textSize="32sp" /> </LinearLayout></LinearLayout>
Output:
4. Changing the Text Color
- The color of the text should also change according to the change in the context of the information displayed to the user.
- For example, if there is warning text it must be in the red color and for disabled text, the opacity or the text color should be grayish. To change the color of the text, the attribute “textColor” is used.
- Android also offers the predefined text colors, which can be implemented using “@android:color/yourColor” as value for the “textColor”. Here the value may be hex code or the predefined colors offered by the android.
Refer to the following code and its output for better understanding.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" tools:ignore="HardcodedText"> <!--the value predefined by android--> <TextView android:id="@+id/text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:text="Warning Message" android:textColor="#B00020" android:textSize="32sp" /> <!--the value predefined by android--> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="16dp" android:text="Disabled Text" android:textColor="@android:color/darker_gray" android:textSize="32sp" /> <!--the value is hex code--> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="16dp" android:text="GeeksforGeeks" android:textColor="#000000" android:textSize="32sp" /></LinearLayout>
Output:
5. Text Shadow
- Shadow for the text can also be given in Android. The attributes required for the shadowed text view are:
android:shadowDx=”integer_value” -> which decides the distance of text from its shadow with respect to x axis, if the integer_value is positive the shadow is on positive of the x axis and vice versa.
android:shadowDy=”integer_value” -> which decides the distance of text from its shadow with respect to y axis, if the integer_value is positive the shadow is on negative of the y axis and vice versa.
android:shadowRadius=”integer_value” -> which decides the amount of the shadow to be given for the text view.
Refer to the following code and its output for better understanding.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" tools:ignore="HardcodedText"> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="16dp" android:shadowColor="@color/grey" android:shadowDx="4" android:shadowDy="4" android:shadowRadius="10" android:text="GeeksforGeeks" android:textColor="#000000" android:textSize="32sp" tools:targetApi="ice_cream_sandwich" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="16dp" android:padding="8dp" android:shadowColor="@color/grey" android:shadowDx="-15" android:shadowDy="4" android:shadowRadius="10" android:text="GeeksforGeeks" android:textColor="#000000" android:textSize="32sp" tools:targetApi="ice_cream_sandwich" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="16dp" android:shadowColor="@color/grey" android:shadowDx="4" android:shadowDy="-15" android:shadowRadius="10" android:text="GeeksforGeeks" android:textColor="#000000" android:textSize="32sp" tools:targetApi="ice_cream_sandwich" /></LinearLayout>
Output:
6. Letter Spacing and All Caps
- Letter spacing and capital letters are some of the important properties of the text View in android.
- For the text of buttons and tab layouts, the text should be in uppercase letters recommended by Google Material Design.
- The letter spacing also should be maintained according to the scenario.
android:letterSpacing=”floatingTypeValue” -> This attribute is used to give the space between each of the letters.
android:textAllCaps=”trueOrfalse” -> This attribute decides, all the letters should be in uppercase or not.
Refer to the following code and its output for better understanding.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" tools:ignore="HardcodedText"> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:letterSpacing="0.15" android:text="GeeksforGeeks" android:textColor="@android:color/black" android:textSize="32sp" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:text="GeeksforGeeks" android:textAllCaps="true" android:textColor="@android:color/black" android:textSize="32sp" /></LinearLayout>
Output:
7. Adding Icons for TextView
- Android also allows adding drawable with the text views.
- There are three positions to add the icons for the TextView. They are a start, end, top, and bottom.
- Refer to the following code and its output, to know how to add the drawable icons to the Text View.
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" tools:ignore="HardcodedText"> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:drawableStart="@drawable/ic_lappy" android:padding="4dp" android:text="GeeksforGeeks" android:textColor="@android:color/black" android:textSize="32sp" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginStart="32dp" android:layout_marginTop="64dp" android:drawableEnd="@drawable/ic_lappy" android:padding="4dp" android:text="GeeksforGeeks" android:textColor="@android:color/black" android:textSize="32sp" /></LinearLayout>
Output:
8. HTML Formatting of the TextView
- In this article we are going to cover how to format and add different styles to a TextView in android by the help of HTML.
activity_main.xml :
<?xml version="1.0" encoding="utf-8"?><androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/main" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity"> <TextView android:layout_margin="10dp" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="GFG" android:id="@+id/tv_gfg" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" /></androidx.constraintlayout.widget.ConstraintLayout>
MainActivity Program to add functionality to the Layout:
package com.example.gfgimport android.os.Bundleimport android.text.Htmlimport android.widget.TextViewimport androidx.activity.enableEdgeToEdgeimport androidx.appcompat.app.AppCompatActivityimport androidx.core.view.ViewCompatimport androidx.core.view.WindowInsetsCompatclass MainActivity : AppCompatActivity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) enableEdgeToEdge() setContentView(R.layout.activity_main) val textView: TextView = findViewById(R.id.tv_gfg) val htmlText = """ <h2>Welcome to GFG TextView Tutorial</h2> <p>This is an GFG Tutorial about TextView <b>bold</b>, <i>italic</i>, and <u>underlined</u> text in a TextView using HTML formatting.</p> <p>You can also include <a href="https://www.geeksforgeeks.org/">links</a> and other HTML elements.</p> """ textView.text = Html.fromHtml(htmlText, Html.FROM_HTML_MODE_COMPACT) }}
Output:
Click Here to Learn more to Create Your Own Android Kotlin App
